450-3382-01-03-XX : Single Pole Socket - Insulated

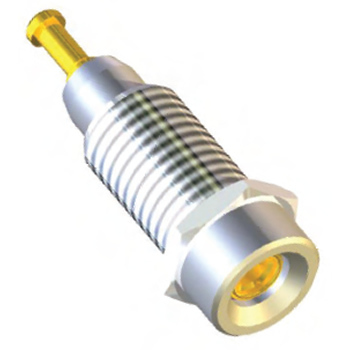

450-3382-01-03-XX : Single Pole Socket - Insulated - Thread Mount

How to order code

450-3382-01-03-XX

Material Code Table
Component	Material	RoHS
Insulator	PTFE
Metal Sleeve	Brass
Socket Body	Brass
Socket Spring	Beryllium Copper (Heat Treated)
Mounting Hex Nut	Brass
Internal Tooth Lockwasher	Phosphor Bronze

Finish Code Table
Dash No	Socket Body Finish	Socket Spring Finish	Metal Sleeve Finish	Mfg. Hex Nut Finish	Lockwasher Finish	RoHS
-03	Gold over Nickel	Gold over Nickel	Nickel	Nickel	Nickel

Insulation Colour Code Table
Dash No	Colour
-10	Black
-12	Red (NOT RoHS compliant)
-16	Blue
-19	White

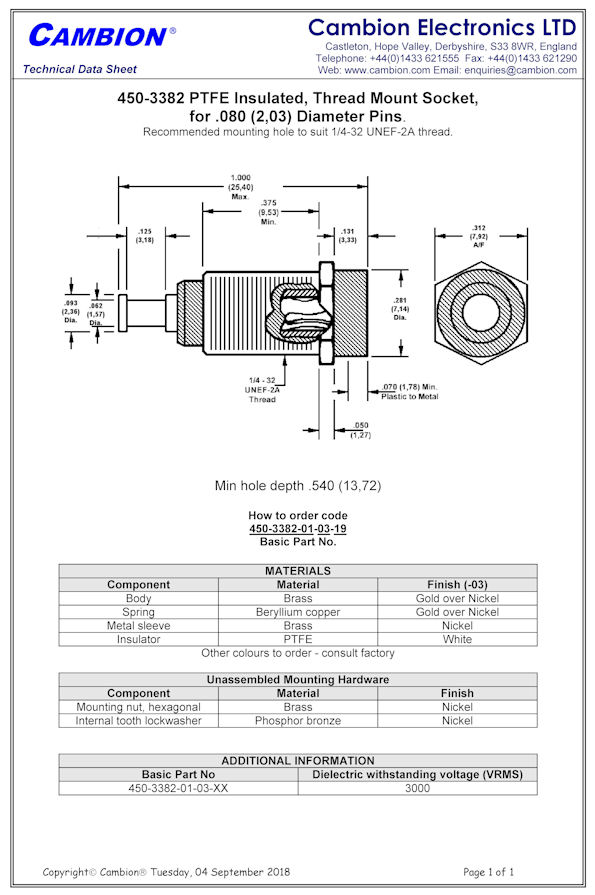

Brochure Download

Page 15

Mounting Hardware supplied un-assembled.

Red PTFE is NOT RoHS compliant
