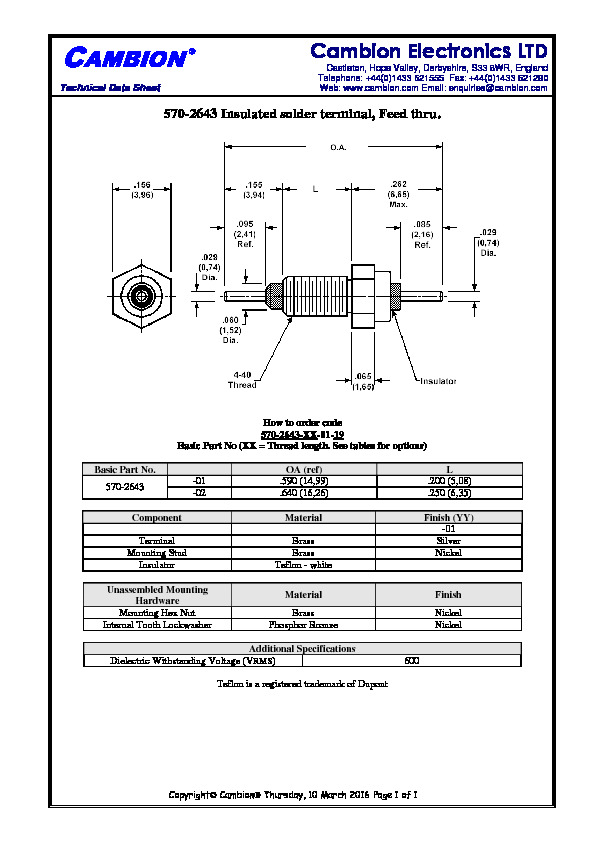

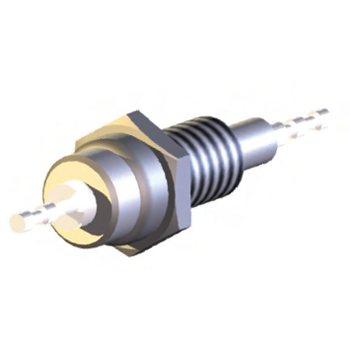

570-2643-01-XX-19 : Solder Terminals - PTFE Feedthrough Insulated, Thread Mount
Download CAD Data
How to order code
570-2643-01-XX-19
Check part availability
Material Code Table
ComponentMaterialRoHS
Mounting Hex Nut Brass RoSH compliant
Internal Tooth Lockwasher Phosphor Bronze RoSH compliant
Insulator PTFE RoSH compliant
Mounting Stud Brass RoSH compliant
Terminal Brass RoSH compliant
Finish Code Table
Dash NoTerminal FinishMtg. Stud FinishMtg. Hex Nut FinishLock Washer FinishRoHS
-01SilverNickelNickelNickelRoSH compliant
-05Electro-SolderNickelNickelNickel
Insulation Colour Code Table
Dash NoColour
-19White
