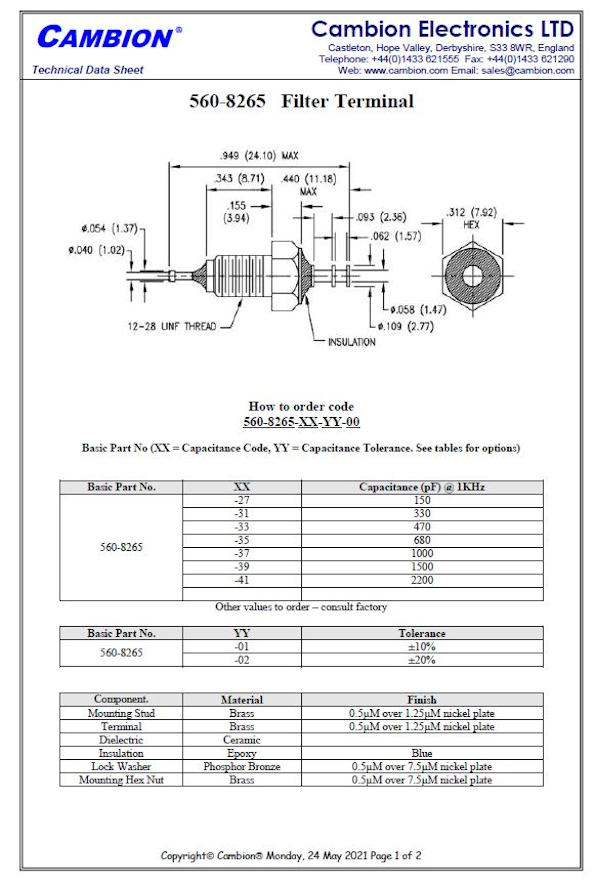

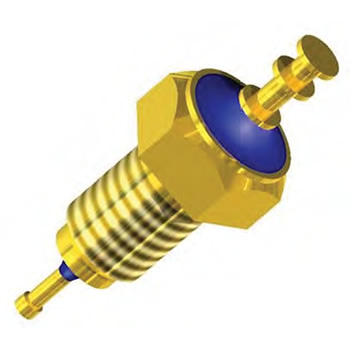

560-8265-XX-XX-00 : Filter Terminal
| Material Code Table |
| Component | Material | Finish |
|
Mounting Stud
|
Brass
|
0.5µM over 1.25µM nickel plate
|
|
Terminal
|
Brass
|
0.5µM over 1.25µM nickel plate
|
|
Dielectric
|
Ceramic
|
|
|
Insulation
|
Epoxy
|
|
|
Lock Washer
|
Phosphor Bronze
|
0.5µM over 1.25µM nickel plate
|
|
Mounting Hex Nut
|
Brass
|
0.5µM over 1.25µM nickel plate
|
|
| Inductance Tolerance Coded Dash Numbers |
| -01 | ±10% | K | To Order |
| -02 | ±20% | M | Standard |
| |
Dielectric Strength: A potential of 250% of rated voltage may be applied for 5 seconds at 25°C
Terminal Strength: A force of 20 lbs. (9.1Kg) exerted in the direction of terminal exceeds the requirements of MIL-C-11015C
Insulation Resistance: >1GΩ @500V DC measured at 25°C
Working Voltage: 500V DC
Supplied with lock washer and hex nut unassembled
Suggested Mounting Torque: 4inch/lbs. (0.440Nm)
Devices are RoHS compliant
Temperature Coefficent: Maximum capacitance change from 25%deg;C. Value over the temperature range: -40°C to +85°C is +22% -55%
|
| | |
