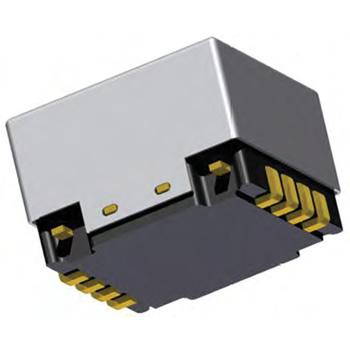

555-8005-XX-01-36 : Shielded Common Mode Choke
Download CAD Data
How to order code
Check part availability
Brochure Download
Core materialFerrite
InductanceMeasured at 100KHz, 30mV (reading taken at 25°C ±5°C)
Terminationsgold over Nickel underplate and meet the requirements of J-STD-001 and IPC-A-610
Weight1.0g (typical)
Operating temperature-51°C to +85°C
Storage temperature-51%deg;C to +105°C
Resistance to soldering heatMaximum of three 20 second reflows at +260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MAS)1 (unlimited floor life at <35°C / 80% relative humidity)
Packaging500pcs per 13" (330mm) reel. Anti-static 24mm carrier tape
PCB washingPure water or alcohol recommended - others to be evaluated by customer
