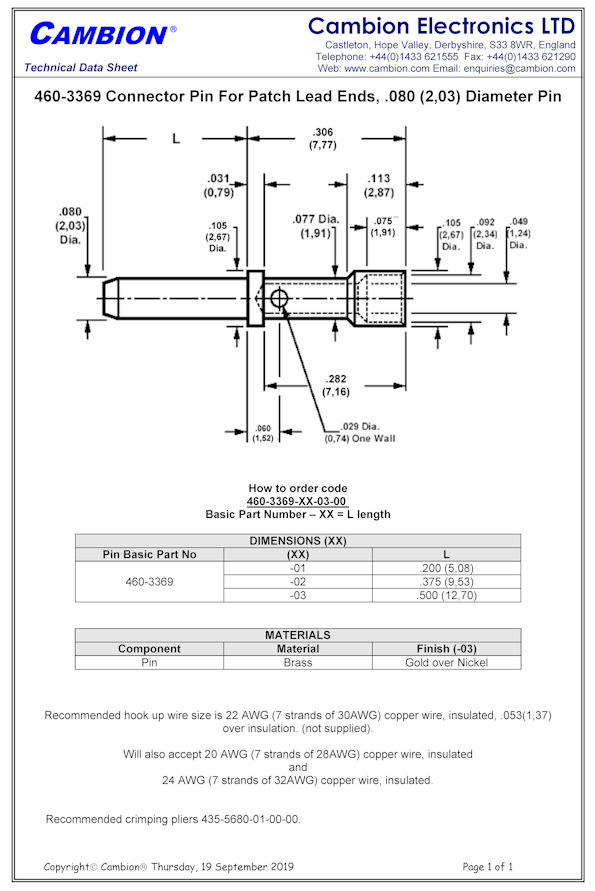

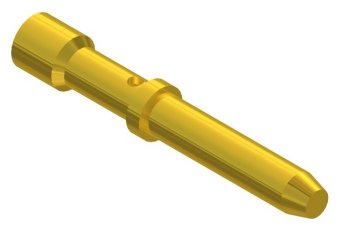

460-3369-03-XX-XX : Connector Pins

460-3369-03-XX-XX : Connector Pins - Patchcoard Crimp

How to order code

460-3369-03-XX-XX

Material Code Table
Component	Material	RoHS
Pin	Brass
Insulation	Polyolefin Plastic

Finish Code Table
Dash No	Pin Finish	RoHS
-03	Gold over Nickel
-04	Electro-Tin

Brochure Download

Page 25

460-3050 / 461-3102
Recommended hook-up wire size .039 (0.99) Max. Diameter over Insulation	# 28AWG, 7 strands # 36 AWG copper wire plastic insulated
460-3308 / 460-3368 / 460-3369
Recommended hook-up wire size .053 (1.37) Max. Diameter over Insulation	# 22AWG, 7 strands # 30 AWG copper wire PTFE insulated
Socket also accommodates	# 20 AWG, 7 strands # 28 AWG copper wire insulated
	# 24 AWG, 7 strands # 32 AWG copper wire insulated
460-3299
Recommended hook-up wire size	# 20AWG, 7 strands # 28 AWG copper wire PTFE insulated
Socket also accommodates	# 18 AWG, 7 strands # 26 AWG copper wire, insulated
	# 16 AWG, 19 strands # 29 AWG copper wire, insulated
