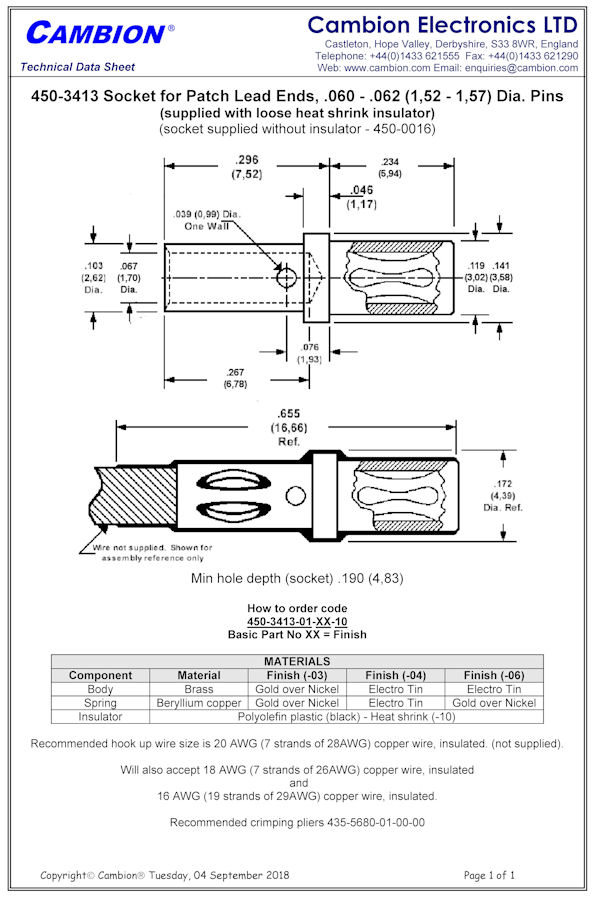

450-3413-01-XX-XX : Single Pole Socket - Patchcord Crimp
How to order code
450-3413-01-XX-XX
Check part availability
Material Code Table
ComponentMaterialRoHS
Body Brass RoSH compliant
Spring Beryllium Copper
(Heat Treated) 		RoSH compliant
Insulation Polyolefin Plastic RoSH compliant
Finish Code Table
Dash NoBody FinishSpring FinishRoHS
-03Gold over NickelGold over NickelRoSH compliant
-04Electro-TinElectro-TinRoSH compliant
-06Electro-TinGold over NickelRoSH compliant
Insulation Colour Code Table
Dash NoColour
-00None
-10Black
Brochure Download
450-3367 / 450-3378 / 450-1807
Recommended hook-up wire size#22AWG, 7 strands #30 AWG copper wire PTFE insulated
Sockets also accommodate#20 AWG, 7 strands #28 AWG copper wire
 #24 AWG, 7 strands #32 AWG copper wire

450-0016 / 450-3413
Recommended hook-up wire size#20 AWG, 7 strands #28 AWG copper wire PTFE insulated
Sockets also accommodate#18 AWG, 7 strands #26 AWG copper wire
 #16 AWG, 19 strands #29 AWG copper wire
