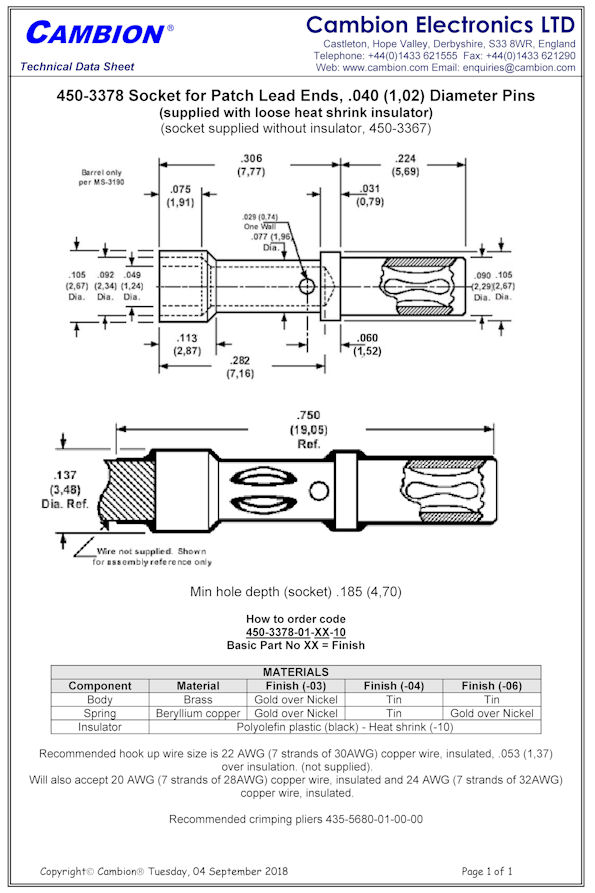

450-3378-01-XX-XX : Single Pole Socket

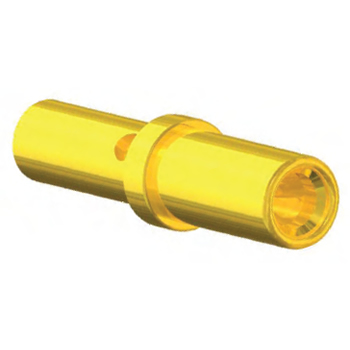

450-3378-01-XX-XX : Single Pole Socket - Patchcord Crimp

How to order code

450-3378-01-XX-XX

Material Code Table
Component	Material	RoHS
Body	Brass
Spring	Beryllium Copper (Heat Treated)
Insulation	Polyolefin Plastic

Finish Code Table
Dash No	Body Finish	Spring Finish	RoHS
-03	Gold over Nickel	Gold over Nickel
-04	Electro-Tin	Electro-Tin
-06	Electro-Tin	Gold over Nickel

Insulation Colour Code Table
Dash No	Colour
-00	None
-10	Black

Brochure Download

Page 13

450-3367 / 450-3378 / 450-1807
Recommended hook-up wire size	#22AWG, 7 strands #30 AWG copper wire PTFE insulated
Sockets also accommodate	#20 AWG, 7 strands #28 AWG copper wire
	#24 AWG, 7 strands #32 AWG copper wire

450-0016 / 450-3413
Recommended hook-up wire size	#20 AWG, 7 strands #28 AWG copper wire PTFE insulated
Sockets also accommodate	#18 AWG, 7 strands #26 AWG copper wire
	#16 AWG, 19 strands #29 AWG copper wire
