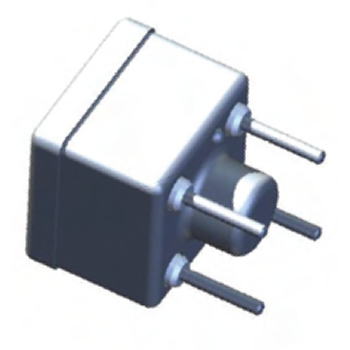

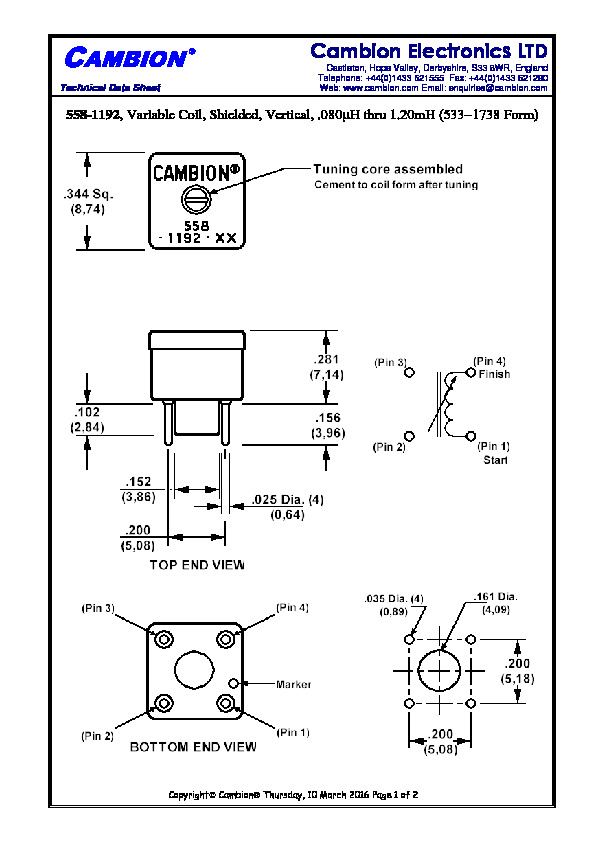

558-1192-15-00-00 : Variable Coils
Download CAD Data
How to order code
558-1192-15-00-00
Check part availability
Core Material
-01 to -07Carbonyl SF(Blue)
-08 to -19Carbonyl E(Red)
-20 to -25Carbonyl C(Yellow)
Brochure Download
Temperature Range: -55°C to +85°C For RoHS Compliant add suffix -LF to the part number
Windings are varnish impregnated and powdered iron cores are moisture proofed
Recommended tuning tool 435-1880-01-00-00
